Pixsys Srl designs and manufactures industrial automation systems, process controllers and indicators from their modern factroy based near Venice, Italy.

The big advantage of Pixsys products is their versatility. The entire range and be configured using their proprietry Labsoftview kit that allows configuration out of the box and saving of settings for future use.

TD Thermal is an official UK distributor and stocks the range of temperature contollers below.

ATR121 double set point controller.

  • Input configurable for thermocouples K, J, S & R, PT100, PT500, PT1000, Ni1000, PTC1K, NTC10K, mA, V & potentiometers.
  • 2 x outputs configurable as relay/relay or SSR/relay

ATR142 dual display 4 digit multi-set point controller

  • Input configurable for thermocouples K, J, S & R, PT100, PT500, PT1000, Ni1000, PTC1K, NTC10K, mA, V & potentiometers.
  • Digital input for SP1/SP2 selection, hold & run (not with PT, PTC or Ni input)
  • 2 x outputs configurable as relay/relay or SSR/relay
  • 24 - 240Vac/Vdc power supply

ATR236 1/16th DIN dual display single set point controller

  • Input configurable for thermocouples K, J, S & R, PT100, PT500, PT1000, Ni1000, PTC1K, NTC10K, mA, V & potentiometers.
  • 2 x outputs configurable as relay/SSR or SSR/relay
  • 24 - 240Vac/Vdc power supply

ATR243 1/16th DIN dual display multi set point controller

  • Input configurable for thermocouples K, J, S & R, PT100, PT500, PT1000, Ni1000, PTC1K, NTC10K, mA, V & potentiometers.
  • Up to 4 setpoints
  • Digital input for SP1/SP2/SP3/SP4 selection, hold, run, Start/Stop cycle (not with PT, PTC or Ni input)
  • Up to 3 x relay, 1 x SSR, mA or Vdc outputs configurable
  • 24 - 240Vac/Vdc power supply

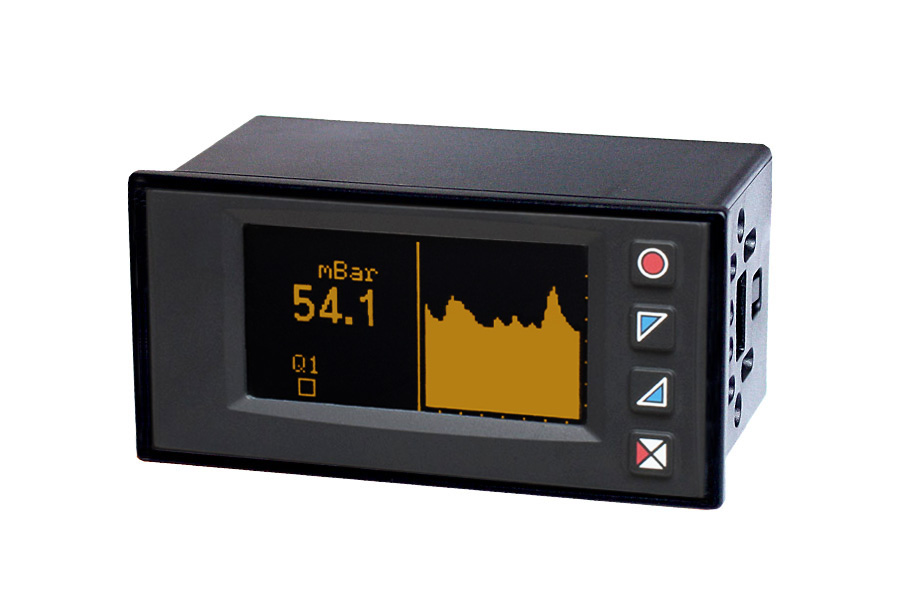

STR551 1/8th DIN multi function indicator

  • Input configurable for thermocouples K, J, S & R, T, E, N, B, PT100, PT500, PT1000, Ni1000, PTC1K, NTC10K, mA, V & potentiometers, customizable linear input (max. 16 steps)
  • 2 x digital inputs- Run/Hold/Tare-Zero/Alarm reset/ Peak reset/ Totaliser reset/ Activate-Reset Sum/ Parameters-Setpoint.
  • 2 x relays - 2A-250Vac
  • 2 x analogue - 1 x 0-10Vdc, 1 x 4-20mA
  • 1 x Auxiliary - 24Vdc 30mA supply for external sensors
  • Serial communications - RS485 Modbus RTU
