HiFlow from HT is a brand new design of heater for efficiently heating liquids in a compact and efficient package.

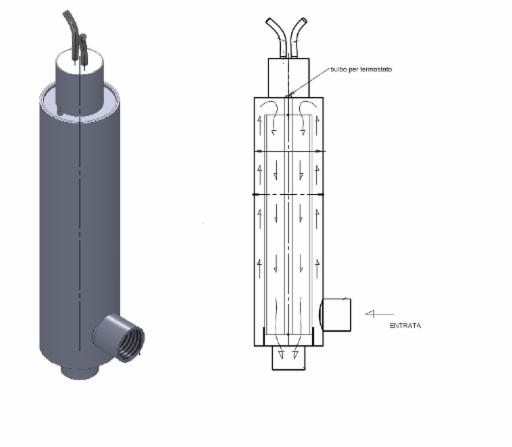

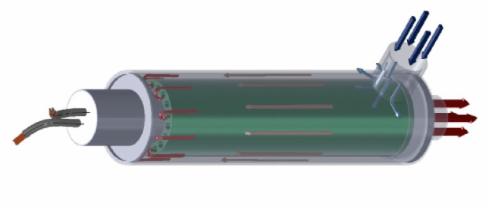

Cold liquid enters the heater and flows around the outer passageways preheating the liquid whilst also cooling the outside to reduce surface temperatures. Liquid then passes through the inner passageways close to the internal heater providing improved heat transfer.

Standard sizes are available from 6,000W up to 36,000W with overall lengths from 310 mm to 900 mm and either 1" or 1ΒΌ" connections

Custom designs can also be product to suit your OEM requirements
